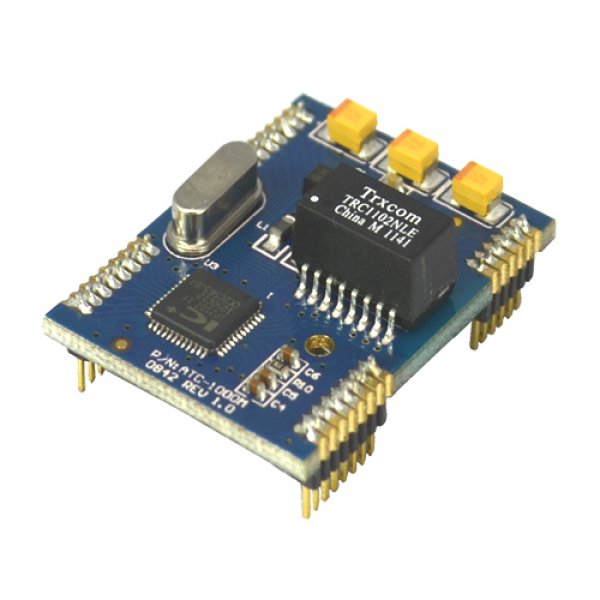

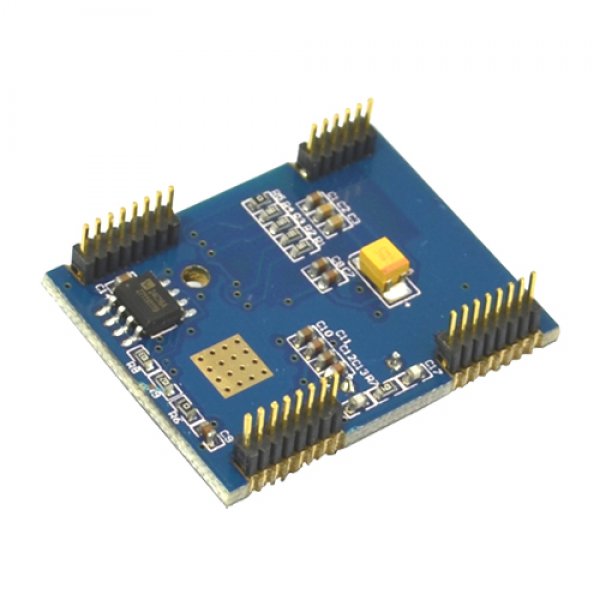

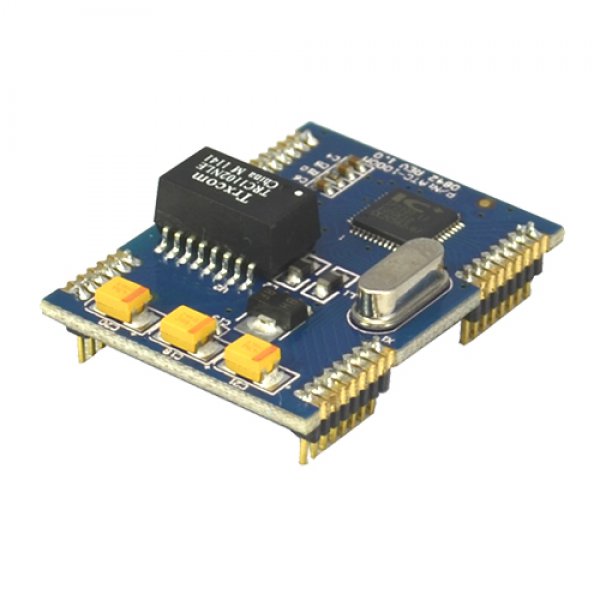

ATC-1000M

1.Adds Ethernet connectivity for RS-232/422/485 devices

2.10/100Mbps Ethernet; 230,400bps serial data rate

3.Supports TCP/Server, TCP/Client and UDP mode

4.Provides six TTL-level programmable digital I/Os

5.Web/Telnet/Serial consoles for device configuration

6.Windows utility included for device management

1.Adds Ethernet connectivity for RS-232/422/485 devices

2.10/100Mbps Ethernet; 230,400bps serial data rate

3.Supports TCP/Server, TCP/Client and UDP mode

4.Provides six TTL-level programmable digital I/Os

5.Web/Telnet/Serial consoles for device configuration

6.Windows utility included for device management

Form Factor

Type : 30-pin dual-inline drop-in module

Pitch : 1.27mm

Dimensions : 37x27x12mm

Network Interface

Type : 10/100BaseT, auto-detect

Protocols : TCP, UDP, HTTP, Telnet, IP, ICMP, ARP

IP addressing : DHCP, Static IP

Operation Modes

TCP/Server, TCP/Client and UDP mode

Serial Interface (TTL-level)

Signals : TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Baud : 300 to 230,400 bps

Parity : None, Even, Odd

Data bits : 7,8

Stop bit : 1,2

Flow control : None, RTS/CTS, XON/OFF

Programmable Digital I/O

PIO0~PIO6 : TTL level compatible

Configuration Methods

Web console, Telnet Console and Serial Console

Windows utility (included in CD)

General

Power input: 3.3VDC

Power consumption: 350mA@+3.3VDC

Operation temp.: 0~70C, 5~95% RH

Storage temp.: -20~85C, 5~95% RH

Regulation: CE/FCC compliant
