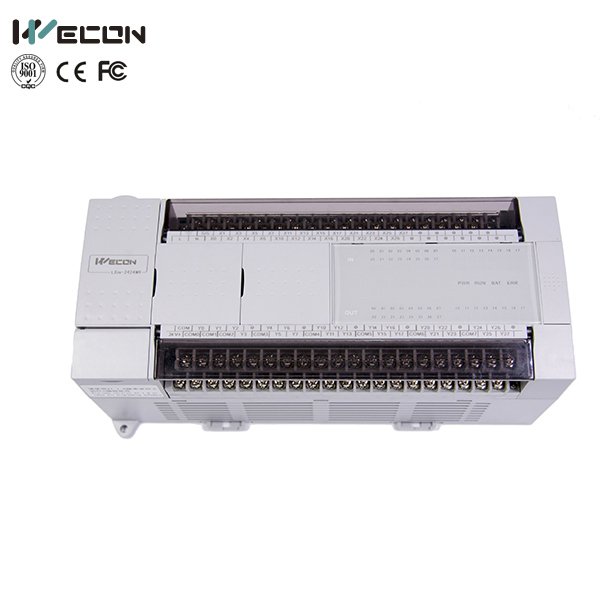

◇Power supply: AC85-265V power,D:DC24V power, 20W rated power output
◇IO:24xDI/24xDO(Relay-type)
◇Port:2 serial port(RS422/RS485, RS485),2 BD board supported.
◇Protocol: 2N NO PROTOCOL, LX3V PROTOCOL
General
| IO |
24xDI/24xDO |
|---|---|
| Running Mode |
Scan round / Interrupt |
| Programming |
Instruction List / Ladder |
| Total Instructions |
Basic Instructions: 27 Applied Instruction: 136+2 (2 instructions different from Mitsubishi) |
| Execute Time |
Basic Instructions: 0.06us /Applied Instruction: 1~10us |
| Program Capacity |
16K |
| Download / Monitor |
Serial Programming Cable/ Mini USB |
| High Pulse Output |
Transistor Type: 2 Channels / Relay Type: N/A |
| High Speed Counter |
6 Channels |
| Timer Interrupt |
3 Channels |
| Latched Addresses |
Adjustable |
| Storage |
FLASH |
| Digital Filtering |
Yes, for all input terminal |
| Serial Port COM1 |
RS422 or RS485 |
| Serial Port COM2 |
RS485 |
| Environment Tempeture |
Operating Temperature：0 ~ 55℃/Storage Temperature：-20 ~ 70℃ |
| Operating Humidity |
35~85%RH (No-condensate) |
| Shock Resistance |
JIS C 0040 Standard |
| Noise Immunity |
Noise Voltage： 1000Vp-p Pulse Width: 1us Frequency: 30-100Hz (Noise Simulator) |
Output
| Output Type |
No |
|---|---|
| Input Power Supply |
DC 24V |
| Output Circuit |
<AC 250V / DC 30V |
| COM Port Current |
No |
| Insulation |
Mechanistic |
| Leak current |
No |
| Min. Load |
No |
| Resistive |
2A / point, 8A / COM port |
| Inductive |
80VA |
| General |
100W |
| ON / OFF Response Time |
<10ms |
AC Power Supply
| Voltage Range |
AC 100V~240V 50Hz~ 60Hz, DC 24V±10% |
|---|---|
| Power Outage Time |
10ms |
| Inrush Current |
<15A 1ms / DC 24V, <15A 5ms (AC100V) <30A 5ms (AC 200V) |
| Power Fuse |
250V/3.15A (AC Power Supply), 250V/3.15A (DC Power Supply) |
| Power Consumption |
<30W (DC Power Supply), <60W (AC Power Supply) |
| Power Output |
DC 24V 700mA |
