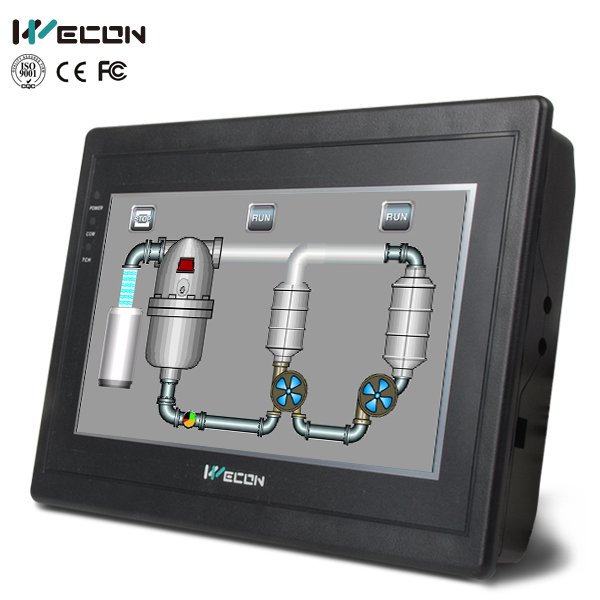

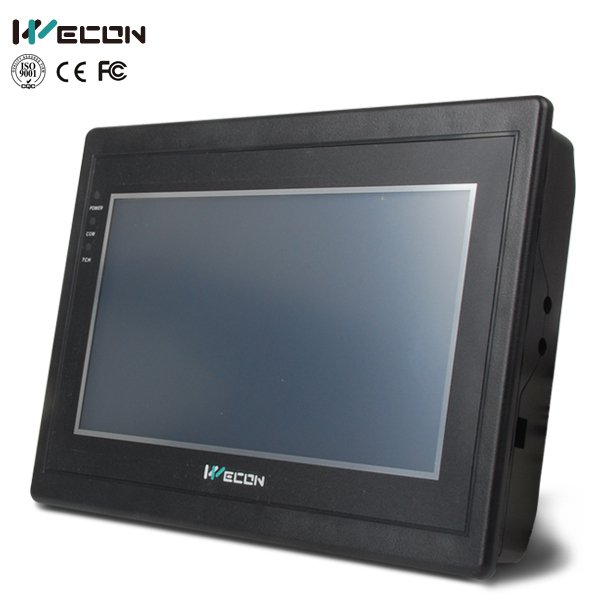

Wecon HMI LEVI-700E-Standard

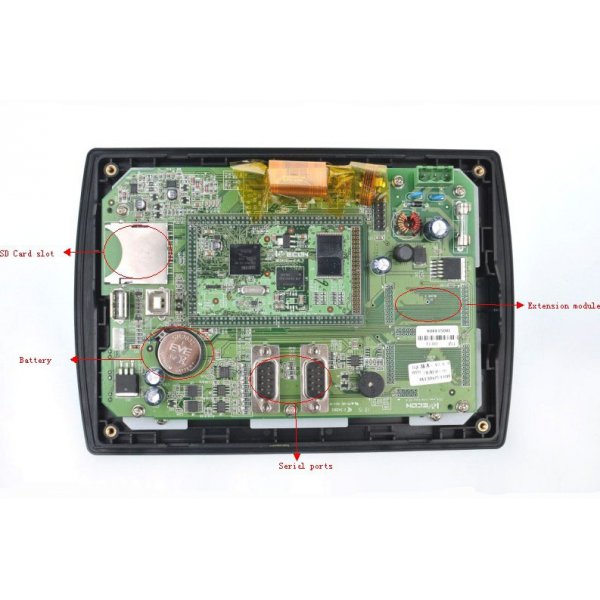

◇Mainboard:RISC CPU 400MHZ, 128M FLASH, 64DDRAM
◇Display Size: 7 inch
◇Resolution: 800×480 TFT LCD: 65536 Colors
◇Interface:Support RS232/RS485/RS422, Two Serial Port
◇Storage:Support Date Store, SD Card, U Disk
◇Mainboard:RISC CPU 400MHZ, 128M FLASH, 64DDRAM
◇Display Size: 7 inch
◇Resolution: 800×480 TFT LCD: 65536 Colors
◇Interface:Support RS232/RS485/RS422, Two Serial Port
◇Storage:Support Date Store, SD Card, U Disk
Type |
LEVI-700E
|
◇General Specifications◇
|
|
Display Size
|
: 7inch True TFT(154.0W×85.9Hmm)
|
Resolution
|
: 800×480 pixels
|
Color
|
: 65536 Colors
|
Brightness
|
: 300cd/m2
|
Backlight
|
: LED
|
Touch Panel
|
: 4 lines Procision Resistence(Surface Hardness 4H)
|
Backlight Life
|
: 50000 Hours
|
CPU
|
: 32-bit 400MHz RISC
|
Storage And Memory
|
: 128M FLASH + 64M DDRAM
|
Formula And RTC
|
: 256KB+Real Time Clock
|
Printing Port
|
: Serial Printing/USB Printing
|
Ethernet
|
: Optional
|
Program Download
|
: One USB SLAVE Interface
|

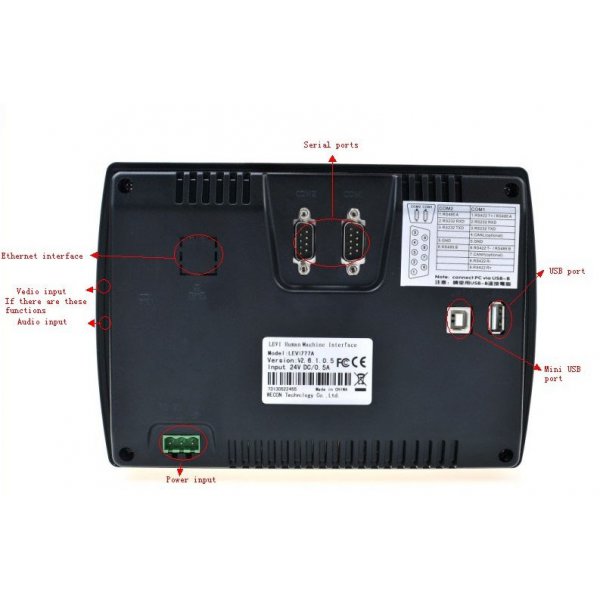

Communicating Port
|
: COM1:RS232/RS422/RS485,COM2:RS232C/RS485
|
◇Electrical Specifications◇
|
|
Rated Power
|
: Under 5W
|
Rated Voltage
|
: DC24V
|
Voltage Range
|
: 12~28VDC
|
Voltage Interval Allowed
|
: Under 5ms
|
Insulation
|
: 20MΩ Under 500VDC
|
Withstand Voltage
|
: 500V AC for 1 minite
|
◇Structrue Specifications◇
|
|
Shell Color
|
: Black
|
Shell Material
|
: ABS Plastic
|

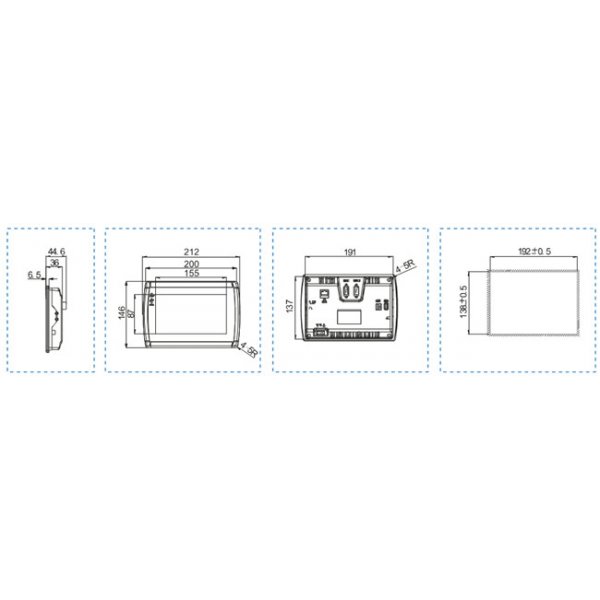

Shape Size
|
: 212W×146H×36Dmm
|
Installation Size
|
: 192W×138Hmm
|
Weight
|
: 0.6kg
|
◇Environmental Specifications◇
|
|
Work Temperature
|
: -10~60℃
|
Work Humidity
|
: 10~90%RH(No Condensation)
|
Storage Temperature
|
: -20~70℃
|
Storage Humidity
|
: 10~90%RH(NO Condensation)
|
Shockproof Test
|
: 10 ~ 25 Hz (X、Y、Z Orientation 2G/30 minite)
|
Coolling Method
|
: Natrual Air Coolling
|
◇Products Certifications◇
|
|
Degree Of Panel Protection
|
: Conform IP65 Authentication
|
CE
|
: Conform EN61 00-6-2
|
