Yotta TC-PRO48 SERIES
TIMER COUNTER PRO 48 SERIES PLC
- Highly visible display with backlit LCD* Conform to the key design of ergonomics
- Five key protection modes:KP-1~5
- EEPROM(overwirtes:100,000 times min.)
- 12VDC external supply power
- Applied to connect PC/HMI/PLC/DCS
- Free PC software “TC-SOFT”Support Modbus Protocol
- Support RS-232/485/422
TIMER COUNTER PRO 48 SERIES PLC
- Highly visible display with backlit LCD* Conform to the key design of ergonomics
- Five key protection modes:KP-1~5
- EEPROM(overwirtes:100,000 times min.)
- 12VDC external supply power
- Applied to connect PC/HMI/PLC/DCS
- Free PC software “TC-SOFT”Support Modbus Protocol
- Support RS-232/485/422
|
Type |
TC-Pro482 Series |
TC-Pro483Series |
|
|
|
|
|
Supported Configuration |
Timer, Dual timer,2-Stage timer, 1-Stage counter, 2-Stage Counter, Total Counter, Batch counter, Dual Counter And Tachometer. |
Timer, Dual timer,2-Stage timer, 1-Stage counter, 2-Stage Counter, Total Counter, Batch counter, Dual Counter, Twin Counter, Multi Mode and Tachometer. |
|
Operation Voltage |
100~240VAC(50/60HZ), 24VDC |
100~240VAC(50/60HZ), 24VDC |
|
installation
|

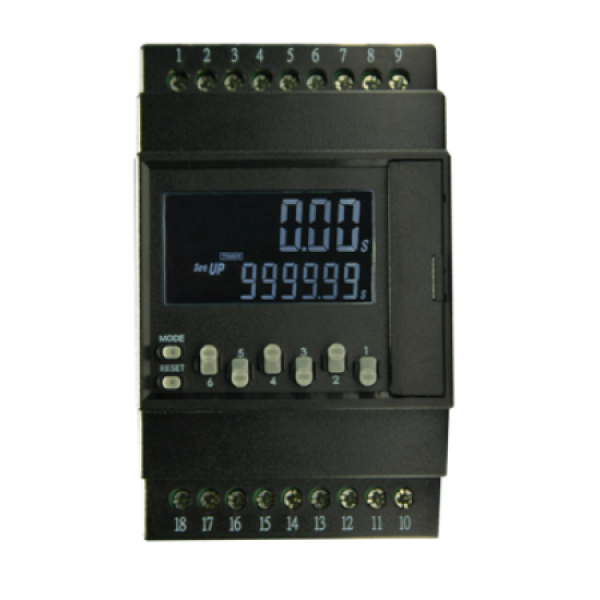

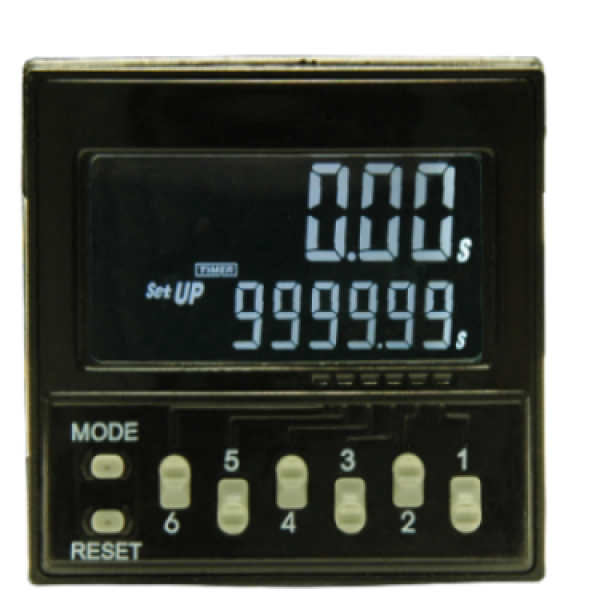

Din rail or Flush Mounting |
Din rail or flush mounting |
|
Max Counter speed |
30Hz or 5kHz(10Khz For tachometer) |
30Hz Or 5KHZ(10KHZ For Tachometer) |
|
Timer Mode |
Elapsed time (UP), Remaining time (down),(selectable) |
Elapsed time (UP), Remaining time (down),(selectable) |
|
Input method
|
No-voltage input : ON impedance : 1kΩ max. Voltage Input : High(logic) level : 4.5~30 VDC Low(logic) level :0~2 VDC (Input resistance: approx. 4.7 kΩ) |
No-voltage input : ON impedance : 1kΩ max. Voltage Input : High(logic) level : 4.5~30 VDC Low(logic) level :0~2 VDC (Input resistance: approx. 4.7 kΩ) |
|
Interface |
RS 232/485/422 |
RS 232/485/422 |
|
Control Output |
Relay contact output: 5A at 250 VAC Transistor output: NPN open collector, max. 100mA at 30 VDC |
Relay contact output: 5A at 250 VAC Transistor output: NPN open collector, max. 100mA at 30 VDC |
