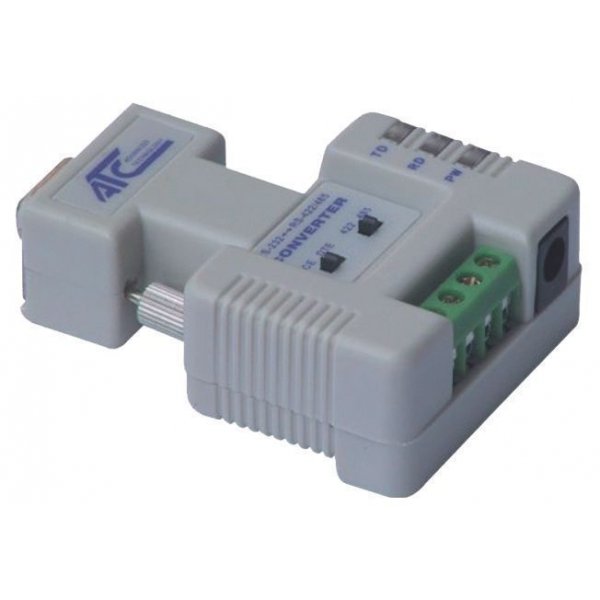

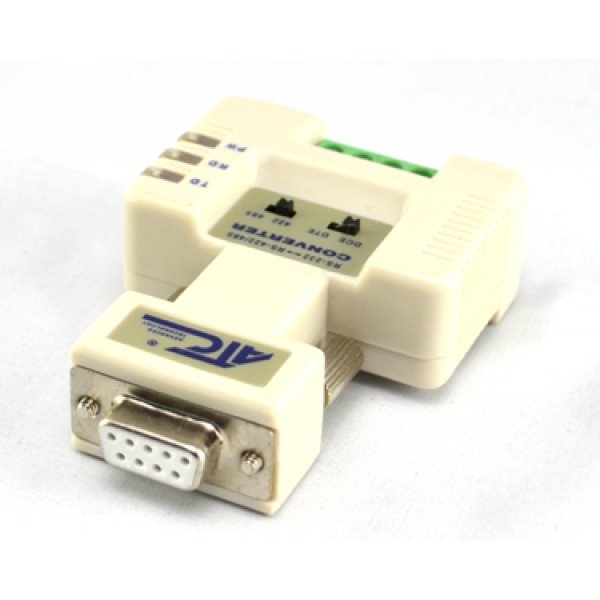

RS-232 to RS422/RS-485 Isolation Interface Converter ATC-105
| Interface Feature | : Compatible with EIA/TIA RS-232C, RS-485/RS-42 (2-Wire Half Duplex or 4-wire full Duplex |
| Electrical Interface | : RS-232C-DB9 Female Connector;RS-422/RS-485-4 bit Terminal |
| Transmission Media | : Twisted pair cable or shielded cable |
| Operation Mode | : Asynchronous half or full duplex |
| Signal Indication | : 3 light indication TR, RD, PWR |
| Isolation | : 3500VRMS 500VDC sequence |
| Transmission Speed | : 9600BPS to 115.2 KBPS |
| Supply | : External 9˜12VDC |
| Transmission Distance | : 0˜5 Kilometers (115200˜9600BPS) |
| Working Environment | : -25°C˜70°C, 5%˜95%RH |
| Size | : 125 mm × 54 mm × 25 mm |
