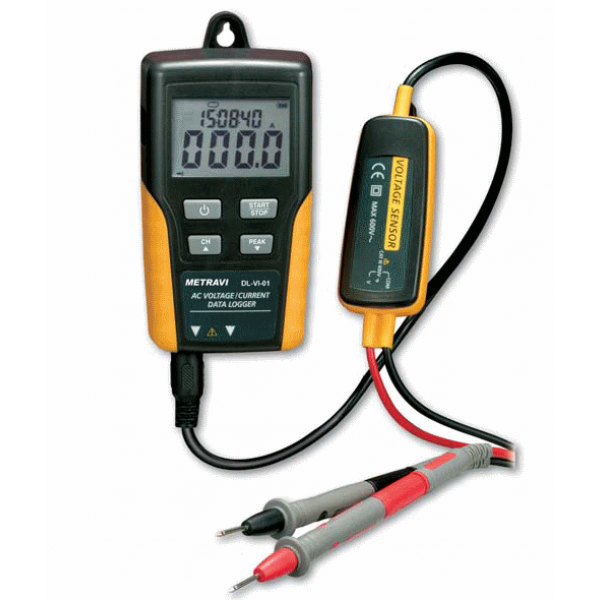

DL-VI-01

Single Channel Input
Measures and records virtual value of Voltage and Current of AC Signal
Stores 100,096 Data
AC Voltage Range: 10V ~ 600V (40Hz ~ 1kHz)
Accuracy: ± 2%
AC Current Range: 10A ~ 200A (50 / 60Hz)
Accuracy: ± 2%
Wave Record Function: Records the wave which exceeds the set Voltage / Current.
Real Time Display, Calibrated with software
Max / Min Reading Hold
Peak Hold Function
USB PC Interface with software

Single Channel Input
Measures and records virtual value of Voltage and Current of AC Signal
Stores 100,096 Data
AC Voltage Range: 10V ~ 600V (40Hz ~ 1kHz)
Accuracy: ± 2%
AC Current Range: 10A ~ 200A (50 / 60Hz)
Accuracy: ± 2%
Wave Record Function: Records the wave which exceeds the set Voltage / Current.
Real Time Display, Calibrated with software
Max / Min Reading Hold
Peak Hold Function
USB PC Interface with software

Click here to view Manual
