- 8-digit high resolution LCD (8mm high)
- Manual reset & external reset
- 25 functions (15 timer functions,10 counter functions, frequency meter & tachometer)
|
Type |

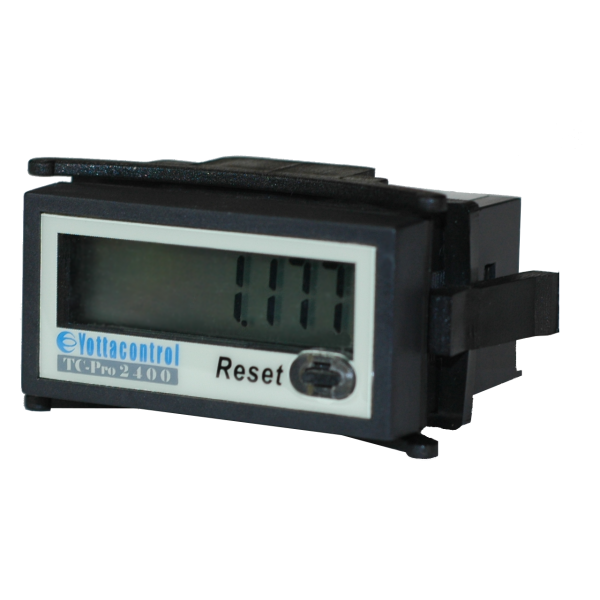

: TC-Pro2400 |
|
Size |
: 48×24×45.7(Unit : mm) |
|
Timer range |
: 0-99999999 |
|
Counter range |
: 0-99999999 |
|
Response frequency |
: 2.5Hz~5000Hz |
|
RPM range |
: 150~300000(unit: Round per minute) |
|
Functions |
: 25 Functions(15 Timer + 10 Counter + FrequencyMeter + Tachometer) |
|
Power supply |
: DC3V Batteries |
|
Batteries Life |
: >2 years |
|
Operation temperature |
: -10℃~55℃ |
|
Display Type |
: LCD |
|
Screw Type |
: M3 |
|
Front panel waterproof protection |
: IP66 |
|
Rear panel waterproof protection |
: IP20 |
|
Vibration |
: IEC60068-2-6 |
|
Static discharge |
: IEC1000-4-2(4KV Air/2KV contact) |
|
Electromagnetic field |
: IEC1000-4-3(field strength 10V/m, frequency 80MHz~1GMHz) |
|
Shock pulse |
: IEC1000-4-4(1KV input) |
|
Weight |
: about 33g |
|
Opening size |
: 45×22(unit : MM) |
