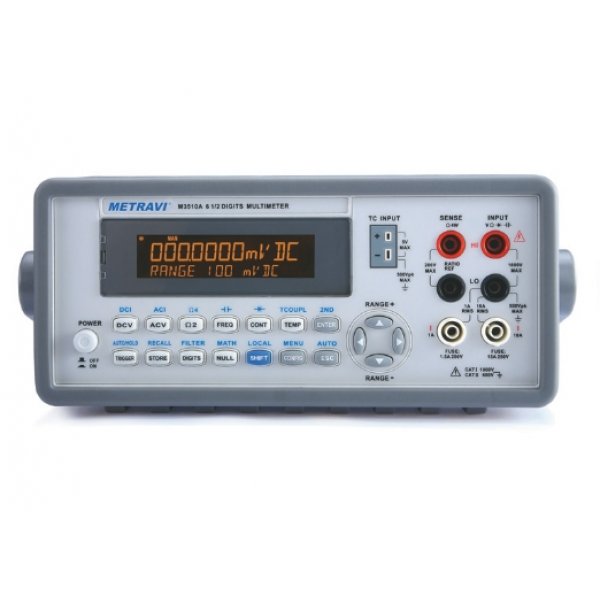

M-3510A
- Most Cost
Effective 6-1/2 Digit Multimeter
- Dual Displays
& Dual Measurements
- Wide Range
Current Measurement
- Basic DC Voltage
Accuracy of 0.009%
- Free Software
PT-TOOL (SCPI Commands) & PT-LINK
- DC Voltage: 0 –
100m / 1 / 10 / 100 / 1000V
- Accuracy:
±0.009%
- AC Voltage: 0 –
100m / 1V / 10 / 100 / 1000V
- Accuracy: ±0.12%
- DC Current: 0 –
10m / 100m / 1 / 10A
- Accuracy: ±0.05%
- AC Current: 0 –
1 / 10A
- Accuracy: ±0.2%
- Frequency: up to
300kHz
- Accuracy: ±0.03%
- Capacitance: 0 –
1n / 10n / 100n / 1u / 10u / 100u / 1000u / 10000uF
- Accuracy: ±1%
- Thermocouple
Measurement
- High Speed
Sampling and Measurements
- Diode &
Continuity Test Facility
- Confirms to
EN61326.
- Is provided with
USB Interface and optionally GPIB and RS-232 Interface can also be
provided.
