Mtec CG Series 6-Digit Economical Counter

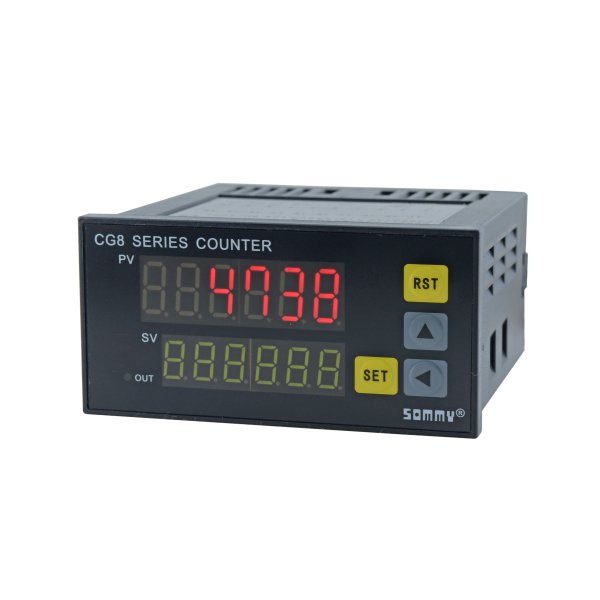

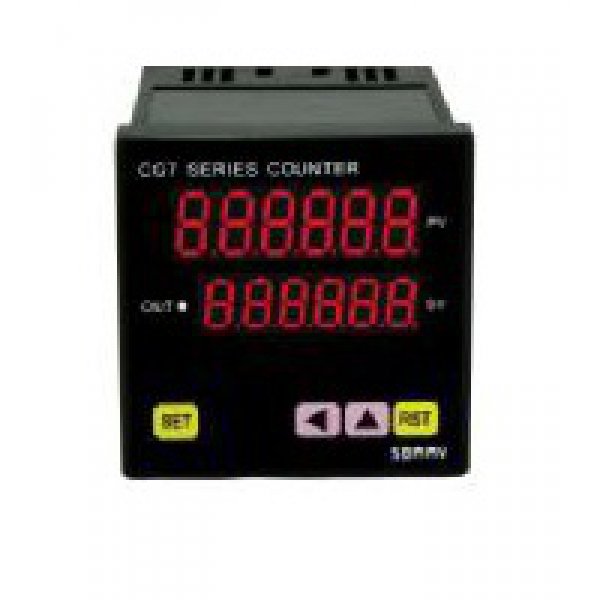

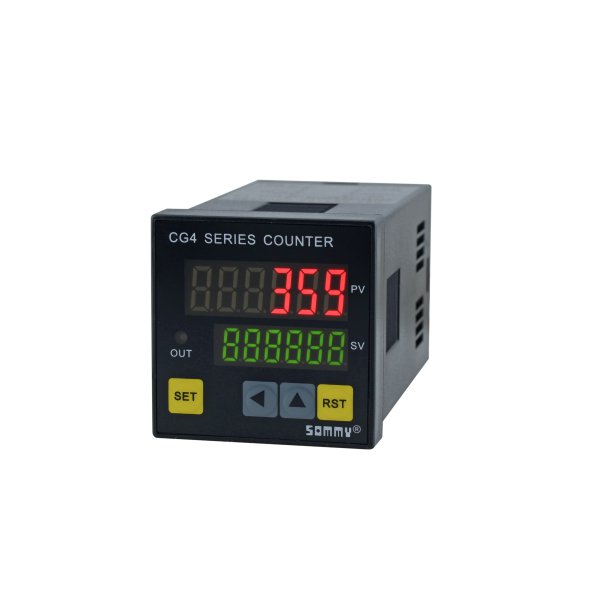

CG Series Counter
- Dual line 6 digit bright LED display
- Several optional panel size:48x48, 48x96, 72x72
- Single input counting, single relay output
- Manual rest, automation rest, key lock and power down memory function
- Settable counting coefficient, NPN or PNP input selectable
- Manual rest, automation rest, key lock and power down memory function.
- Single input counting, single relay output
- Several optional panel size:48x48, 48x96, 72x72
- Widely applied to timer processing ,food machinery, packing machinery,Steel processing industries etc.
CG Series Counter
- Dual line 6 digit bright LED display
- Several optional panel size:48x48, 48x96, 72x72
- Single input counting, single relay output
- Manual rest, automation rest, key lock and power down memory function
- Settable counting coefficient, NPN or PNP input selectable
- Manual rest, automation rest, key lock and power down memory function.
- Single input counting, single relay output
- Several optional panel size:48x48, 48x96, 72x72
- Widely applied to timer processing ,food machinery, packing machinery,Steel processing industries etc.
|
Display |
: 4-Digit Dual Display |
|
Control O/P |
: Relay o/p |
|
Alarm O/P |
: 1 Alarm |
|
Power Supply |
: 220/110VAC+10%, 50/60Hz |
|
Relay Capacity |
: 250VAC/3A |
|
Output Power |
: DC 18V+5V (<25Ma) |
|
Insulation Resistance |
: ≥20MΩ |
|
Insulation Strength |
: 1.5KV/1M |
|
Counting Input Speed |
: ≤1/30/500/1000Hz |
|
Counting Range |
: 0.01-999999 |
|
Delay Time |
: 0.01-600.00s |
|
Coefficient Setting Range |
: 0.01-9999.99 |
|
Reset Signal Freq. Selection |
: 2, 10, 100, 500Hz selectable |
