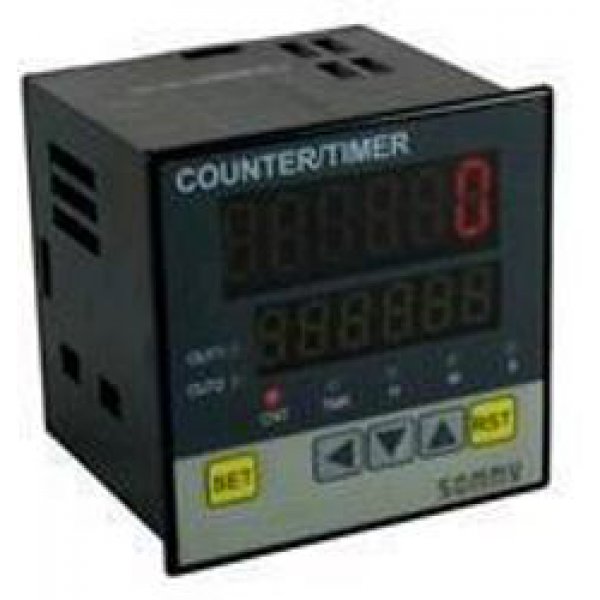

Mtec CQ Series 6 Digit MultiFunction Timer Counter
CQ Series 6 Digit Multifunction Timer
- With counting/length counting/timing function
- Dual line 6 digits LED display
- With up/down counting , timing function
- 8 kinds of output modes
- Width of input signal can be selected
- Mounting deepth is only 68mm , saving installing space
CQ Series 6 Digit Multifunction Timer
- With counting/length counting/timing function
- Dual line 6 digits LED display
- With up/down counting , timing function
- 8 kinds of output modes
- Width of input signal can be selected
- Mounting deepth is only 68mm , saving installing space
| Display digit | : Dual lines of 6-digit LED |
| Residual Voltage | : Max 24VDC Open-circuit, impedance : Min 100K? |
| Transmission Voltage Input | : Input Impedance 5.4K?,”H” : 5-30VDC, “L” : 0-2VDC |
| No-voltage input | : Short-circuit impedance: Max 1K? |
| Counter | : Reset input(select 1ms or 20ms) |
| Timer | : CP1,CP2,PAUSE,EXTERNAL_RESET select 1ms or 20ms |
| Contacts Capacity | : NO : 250VAC 3A Impedance, NC 250VAC 2A impedance |
| Solid State Relay Capacity | : Max 30VDC, Max 100Ma |
| Counting speed | : 1cps,30cps,1kcps,5kcp |
| Rated voltage | : AC 85-265VAC 50/60Hz |
| Memory time | : 10 years |
| Auxiliary power | : 12VDC±10% Beblow100mA |
| Ambient temperature | : -10°C-50°C (Non-Freezing) |
| Store temperature | : -25°C-65° (Non-freezing) |
| Ambient Humidity | : 35-85%RH |
