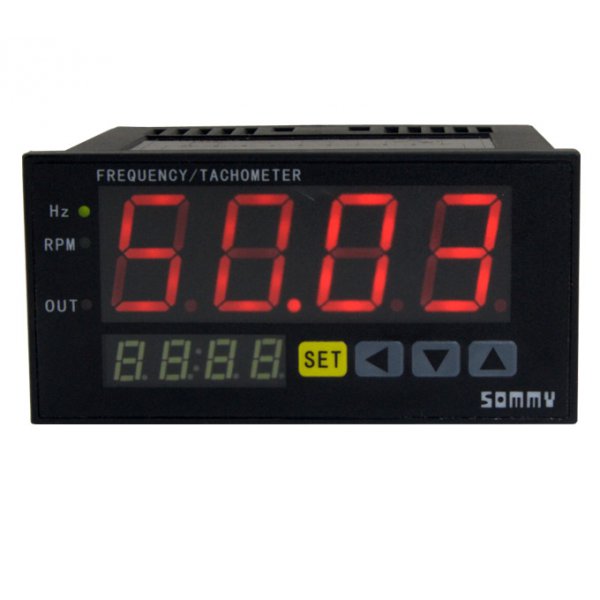

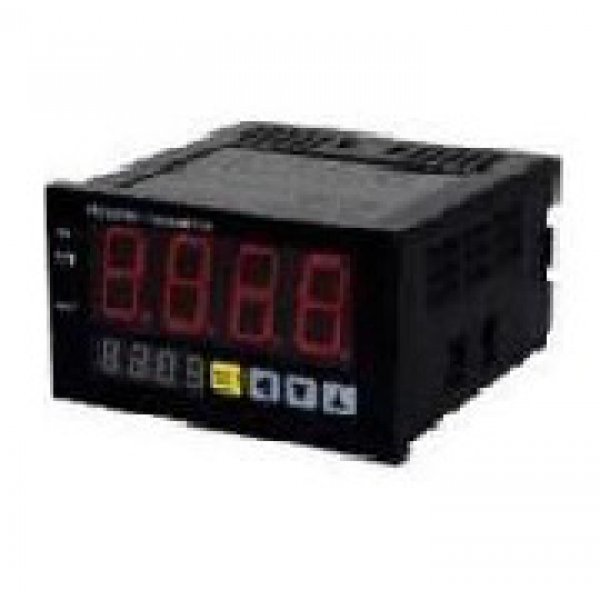

Mtec FG8 Series Frequency Digital Meter

Function

: To measure frequency

Input mode

: Frequency/Revolution : L : 0-2V, H : 5-30VDC
Industrial Frequency : 60-450VAC

Measuring range
Frequency

: 0.1-5000Hz

Industrial Frequency

: 0.1-1000Hz

Revolution

: 6-9999RPM

Measuring Accuracy

: ±0.1% (25°C±5°C)

Power consumption

: ≤3VA

Input Impedance

: FG8-**10≥10KΩ，FG8-**10H≥300KΩ

Decimal point Frequency/Industrial Frequency

:00.00-0 (Float Decimal point)

Revolution : No decimal point

Responding speed

: About 0.5S

Max.Display

: 9999

Operating humidity

: ≤85% RH

Operating Temperature

: 0-50°C

Power supply

: AC 110V/220V 60/50Hz

Dimension

: 48mm(H)×96mm(W)×110mm(L)

Insulation strength

: AC 2000V 1min

Insulation impedance

: DC 500V ≥100MΩ
