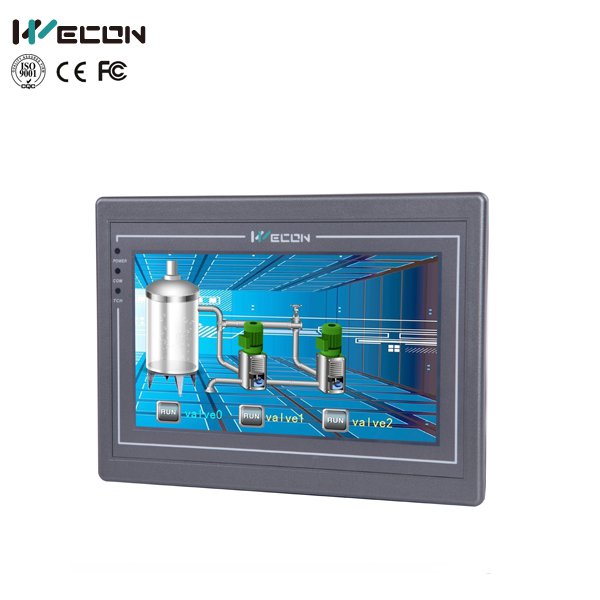

Wecon PI 7 inch Human machine interface(HMI) PI3070 economic

  • Hardware: CORTEX A8 600MHZ CPU, 128M FLASH, 128M DDII RAM
  • Display size: 7 inch
  • Resolution: 800×480 TFT LCD 16,000,000colors
  • Interface: RS232/RS485/RS422 (2 COM ports available),one Ethernet port
  • Storage: Support Date Storage, SD Card， U Disk
  • Programmed by PIStudio
  • WINCE7.0 LINUX supported

  • Hardware: CORTEX A8 600MHZ CPU, 128M FLASH, 128M DDII RAM
  • Display size: 7 inch
  • Resolution: 800×480 TFT LCD 16,000,000colors
  • Interface: RS232/RS485/RS422 (2 COM ports available),one Ethernet port
  • Storage: Support Date Storage, SD Card， U Disk
  • Programmed by PIStudio
  • WINCE7.0 LINUX supported

Hardware

OS
  •  Linux QT
CPU
  • Cortex A8 600MHz
Touch Screen
  • High precision four-wire resistive

Display

Screen Size
  • 7 inch
Resolution
  • 800*480
Brightness
  • 300 nit
Contract
  • 500:1
Backlight
  • LED
Backlight Life
  • 50,000 hours
Colors
  • 16,000k colors (24bit)

Storage

Flash
  • 128MB
RAM
  • DDRIII 128MB
SD card
  • Yes

Ports

USB Port
  • USB Host USB 2.0 x 1 USB Client USB 2.0 x 1
Serial Port COM1
  • RS232/RS422/RS485
Ethernet
  • No
CAN
  • No

Power

Power Supply
  • 24V DC(12~28V DC)
Power
  • <10W
Power Isolation
  • No
Withstand Voltage
  • 500V AC (<1 minute)
Insulation Resistance
  • Upon 20MΩ 500VDC
Seismic resistance
  • 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)

Specification

Enclosure
  • ABS
Dimension(mm)
  • 201.0W*146.6H*36.5D
Mounting size(mm)
  • 192.0W*138.0H

Environment

Protection
  • IP65 (Front panel)
Storage Temperature
  • -30℃ ~ 70℃
Environment.Working Temperature
  • -10℃ ~ 60℃
Humidity
  • 10 ~ 90%RH

Certification

CE Certification
  • EN61000-6-2:2005, EN61000-6- 4:2007 Standard
FCC Certification
  • FCC Class A

Software

Software
  • PI Studio HMI Programming Software
