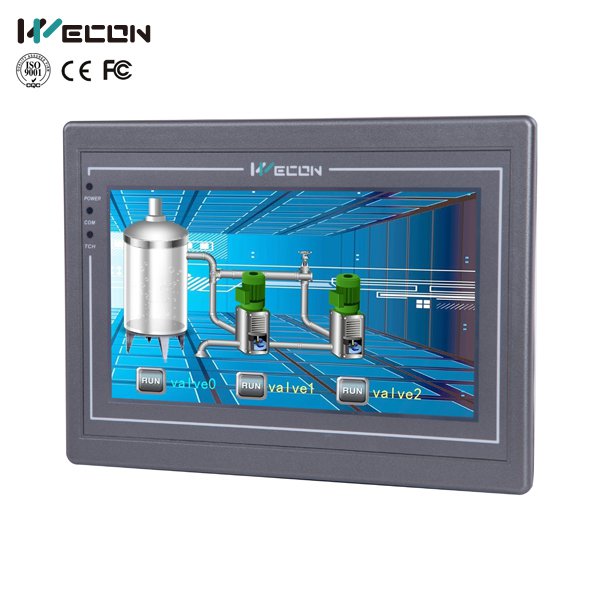

Wecon PI 10.2 inch Human machine interface(HMI) economic:PI3102

◇Hardware:- CORTEX A8 600MHZ CPU, 128M FLASH, 128M DDII RAM
◇Display size:- 10.2 inch
◇Resolution:- 800×480 TFT LCD 260,000 colors
◇Interface:- RS232/RS485/RS422 (2 COM ports available)
◇Storage:- Support Date Storage, SD Card, U Disk
◇ Programmed by PIStudio
◇ WINCE7.0 LINUX is optional

Hardware
OS	Linux QT
CPU	Cortex A8 600MHz
Touch Screen	High precision four-wire resistive
Display
Screen Size	10.2 inch
Resolution	800*480
Brightness	300 nit
Contract	500:1
Backlight	LED
Backlight Life	50,000 hours
Colors	260k colors (18bit)
Storage
Flash	128MB
RAM	DDRIII 128MB
SD card	Yes

Ports
USB Port	USB Host USB 2.0 x 1 USB Client USB 2.0 x 1
Serial Port COM1	RS232/RS422/RS485
Ethernet	Yes
CAN	No
Power
Power Supply	24V DC(12~28V DC)
Power	<10W
Power Isolation	No
Withstand Voltage	500V AC (<1 minute)
Insulation Resistance	Upon 20MΩ 500VDC
Seismic resistance	10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)
