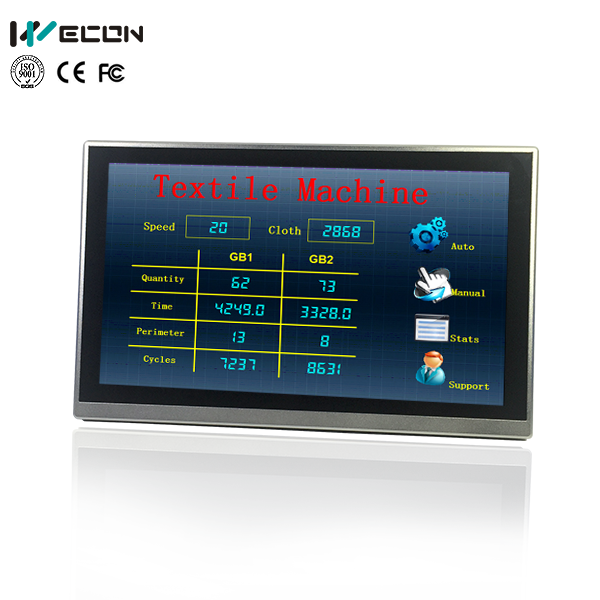

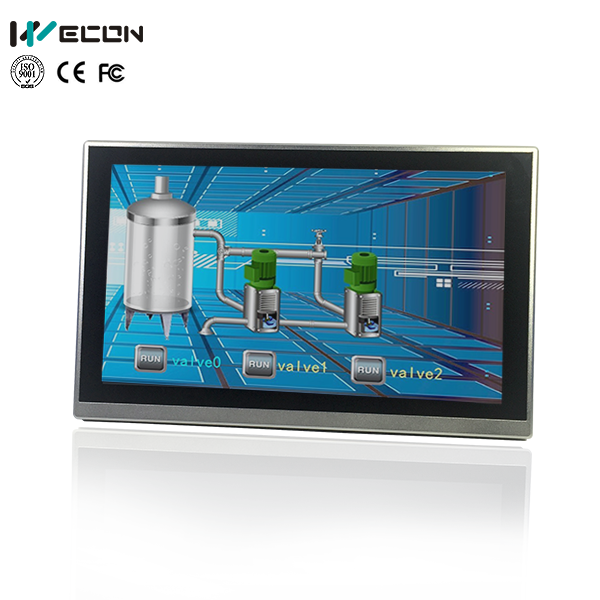

WECON PI 15 INCH HUMAN MACHINE INTERFACE HMI PI9150
◇Hardware: CPU 1.4GHz, 4GB FLASH,DDRIII 512MB
◇Display size: 15 inch
◇Resolution: 1920*1080 TFT LCD 16,000,000 colors
◇Interface: one RS422/RS485,two RS485,two RS232
◇Storage: Support Date Storage, SD Card, U Disk
◇ Mobile Apps supported, Cloud monitor supported, Multiple users supported, communication encrypted.
◇ Programmed by PIStudio
◇Hardware: CPU 1.4GHz, 4GB FLASH,DDRIII 512MB
◇Display size: 15 inch
◇Resolution: 1920*1080 TFT LCD 16,000,000 colors
◇Interface: one RS422/RS485,two RS485,two RS232
◇Storage: Support Date Storage, SD Card, U Disk
◇ Mobile Apps supported, Cloud monitor supported, Multiple users supported, communication encrypted.
◇ Programmed by PIStudio
hardware
| OS |
Linux QT |
|---|---|
| CPU |
Cortex A9 1.4GHz |
| Touch Screen |
High precision four-wire resistive |
Display
| Screen Size |
15 inch |
|---|---|
| Resolution |
1920*1080 |
| Brightness |
300 nit |
| Backlight |
LED |
| Backlight Life |
50,000 hours |
| Colors |
16,000k colors (24bit) |
Storage
| Flash |
4GB EMMC |
|---|---|
| RAM |
DDRIII 1G |
| SD card |
Yes |
Ports
| USB Port |
USB Host USB 2.0 x 1 USB Client USB 2.0 x 1 |
|---|---|
| Ethernet |
Yes |
| CAN |
optional |
Power
| Power Supply |
24V DC(12~28V DC) |
|---|---|
| Power |
<10W |
| Power Isolation |
Built-in Power Isolation |
Specification
| Enclosure |
Aluminum alloy front panel, metal case |
|---|---|
| Dimension(mm) |
401W*251H*49.2D |
| Mounting size(mm) |
394.0*244.0 mm |
Environment
| Protection |
IP65 (Front panel) |
|---|---|
| Storage Temperature |
-30℃ ~ 70℃ |
| Environment.Working Temperature |
-10℃ ~ 60℃ |
| Humidity |
10 ~ 90%RH |
Software
| Software |
PI Studio HMI Programming Software |
|---|
