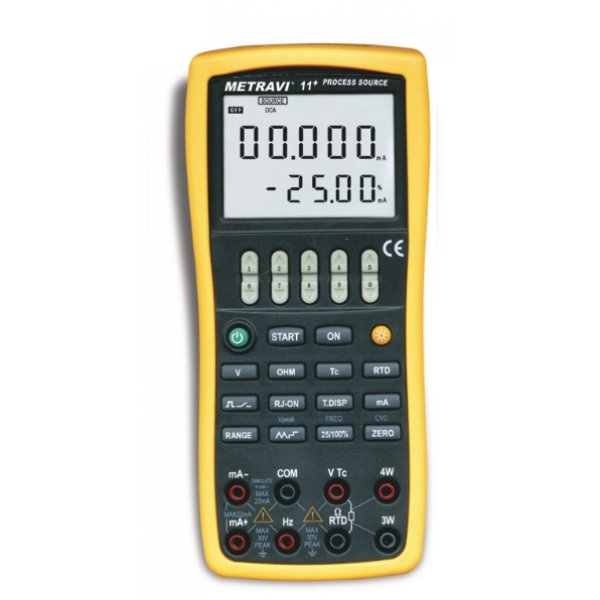

11 plus
- Provides 25% step or 100% step DC Current output
current manually or Automatically.
- TC Source terminals and built in lead connector
of same temperature, The unit can be converted between °C & °F
- Auto Power Off
- Display
: 6 Digits white backlight LED on the LCD
- Technical Specifications
- DC voltage
: 0 – 100mV/1V/10V
- Resolution : 1µV/10µV/0.1mV
- Accuracy : ±0.02%
- DC Current
: 0 – 20mA
- Resolution : 1µA
- Accuracy : ±0.02%
- Resistance
: 0 - 400Ω/4KΩ/40KΩ
- Resolution : 0.01Ω/0.1Ω/1Ω
- Accuracy : ±0.02%
- R Type thermocouple
: 0°C to 1767°C
- Resolution : 1°C, Accuracy : ±1.2°C
- S Type thermocouple
: 0°C to 1767°C
- Resolution : 1°C, Accuracy : ±1.2°C
- K type thermocouple
: -200.0°C to 1372°C
- Resolution : 0.1°C, Accuracy : ±0.5°C
- E type thermocouple : -200°C to 1000°C
- Resolution : 0.1°C, Accuracy : ±0.4°C
- J type thermocouple
: -200°C to 1200°C
- Resolution : 0.1°C, Accuracy : ±0.5°C
- T type thermocouple
: -250.0°C to 400°C
- Resolution : 0.1°C, Accuracy : ±0.6°C
- N type thermocouple
: -200.0°C to 1300°C
- Resolution : 0.1°C, Accuracy : ±0.7°C
- B type thermocouple
: 600°C to 1820°C
- Resolution : 1°C, Accuracy : ±1.1°C
- L type thermocouple
: -200.0°C to 900°C
- Resolution : 0.1°C, Accuracy : ±0.5°C
- U type thermocouple
: -200.0°C to 600°C
- Resolution : 0.1°C, Accuracy : ±0.5°C
- PT-100 Sensor
: -200.0°C to 800.0°C
- Resolution : 0.1°C, Accuracy : ±0.3°C
- PT-200 Sensor
: -200.0°C to 630.0°C
- Resolution : 0.1°C, Accuracy : ±0.8°C
- PT-500 Sensor
: -200.0°C to 630.0°C
- Resolution : 0.1°C, Accuracy : ±0.4°C
- PT-1000 Sensor
: -200.0°C to 630.0°C
- Resolution : 0.1°C, Accuracy : ±0.2°C
- Cu-10 sensor :
-100.0°C to 260.0°C
- Resolution : 0.1°C, Accuracy : ±1.8 °C
- Cu-50 Sensor
: -50.0°C to 150°C
- Resolution : 0.1°C, Accuracy : ±0.6°C
- Frequency
: 0 – 100Hz/1kHz/10KHz/100KHz
- Resolution : 0.01Hz
- Accuracy : ±2 counts
- Pulse
: 0 - 100Hz/1KHz/10KHz
- Resolution : 1 cyc
- Accuracy : ±2 counts
- Switch
: 0 – 100Hz/1KHz/10kHz/100KHz
- Resolution : 0.01Hz
- Accuracy : ±2 counts
