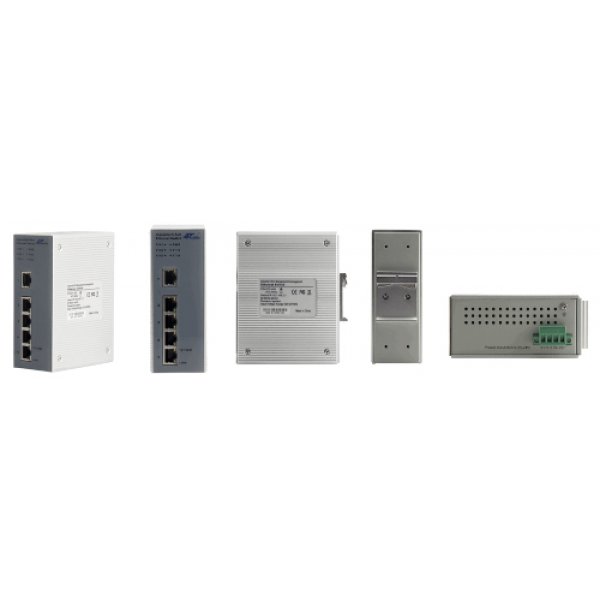

ATC-405 5-Port Manage / Unmanaged Ethernet Switch

5 PORT ETHERNET SWITCH : ATC-405





  • Each port can be configured to be 10Base-TX, 100Base-TX
  • Up to 2K MAC address
  • Support auto-polarity for 10Mbps
  • Half/Full duplex traffic selection
  • Broadcast storm protection
  • Auto MDI-MDIX
  • Layer2-4 Multi-Field classifier
  • Class of Service-Port based, MAC address, VID, VLAN priority, IPv4 ToS, IPv6 DSCP,TCP/UDP
  • Support policy-based QoS
  • Support 4-level priority queues per port
  • WRR/WFQ/SP
  • Support hardware IGMP v1,v2 snooping
  • Support Port mirror
  • Support 16 VLAN (IEEE Std 802.1q)
  • Support STP, RSTP and MSTP
  • Support port-based access control
  • Supports rate control





5 PORT ETHERNET SWITCH : ATC-405





  • Each port can be configured to be 10Base-TX, 100Base-TX
  • Up to 2K MAC address
  • Support auto-polarity for 10Mbps
  • Half/Full duplex traffic selection
  • Broadcast storm protection
  • Auto MDI-MDIX
  • Layer2-4 Multi-Field classifier
  • Class of Service-Port based, MAC address, VID, VLAN priority, IPv4 ToS, IPv6 DSCP,TCP/UDP
  • Support policy-based QoS
  • Support 4-level priority queues per port
  • WRR/WFQ/SP
  • Support hardware IGMP v1,v2 snooping
  • Support Port mirror
  • Support 16 VLAN (IEEE Std 802.1q)
  • Support STP, RSTP and MSTP
  • Support port-based access control
  • Supports rate control





Network Interface

Interface

: Ethernet 10Base-T or 100Base-TX

Connector

: RJ45

Protocol

: Port based, MAC address, VID, VLAN priority, IPv4 ToS, IPv6 DSCP,TCP/UDP a

Indicators(LED)







 --10/100Base-TX Link,

   activity indicator

-- 10/100M bps speed connection

--Half/Full Duplex

--Power indicator

Technology

Standards

:IEEE802.3, 802.3u, 802.3x, IEEE 802.1x, IEEE 802.1Q



Address Table Size

:2K MAC Addresses

Performance

:10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDIX connection



System Requirements

--Ethernet Category 5 cable
--Network card for each PC
-- Microsoft Windows XP or Vista for running Configuration Utility

Power

Input Voltage

: 8-24 VDC@500mA

Connector

: Removable Terminal Block

Physical Specifications

Dimensions

: 54 x 105 x 135 mm (2.1 x 4.1 x 5.3 in)

Weight

: 0.8 kg (1.32lb)

Installation

: DIN-Rail Mounting

Operating temperature

: e -40° to 70° C
