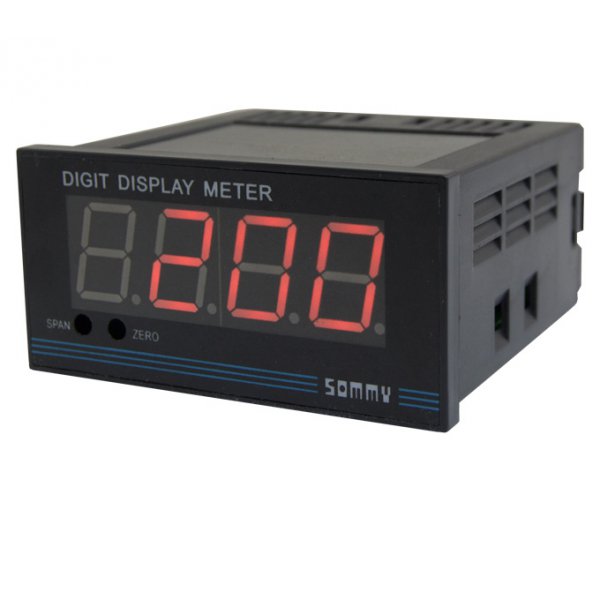

| (1) Decimal point , rate , range and zero freely adjustable |
| (2) Input signal: 0-10V DC , 4-20mA DC |
| (3) Display range: -1999-+1999 |
Technical Parameter
|
Measuring function |
Equipped with many kinds of sensors |
|
Input mode |
Current：4～20mA(0～20mA) Voltage：0～10V （0～5V，0～200mV) |
|
Accuracy |
±0.5%F.S±2Digit (23℃±5℃) |
|
A/D conversion |
Dual slope |
|
Sampling speed |
About 2.5 times/s |
|
Response speed |
About 4.5 times /s |
|
Max display |
1999 set decimal point freely |
|
Display |
Red LED (14.2mm high) |
|
Power consume |
≥3.5VA |
|
Ambient temperature |
0℃～50℃ |
|
Power supply |
AC 220V 50Hz |
|
Dimension |
48mm(H)×96mm(W)×70mm(L) |
|
Weight |
500g |
|
Dielectric strength |
AC 1500V 1min |
|
Insulated impedance |
DC 500V ≥100MΩ |
