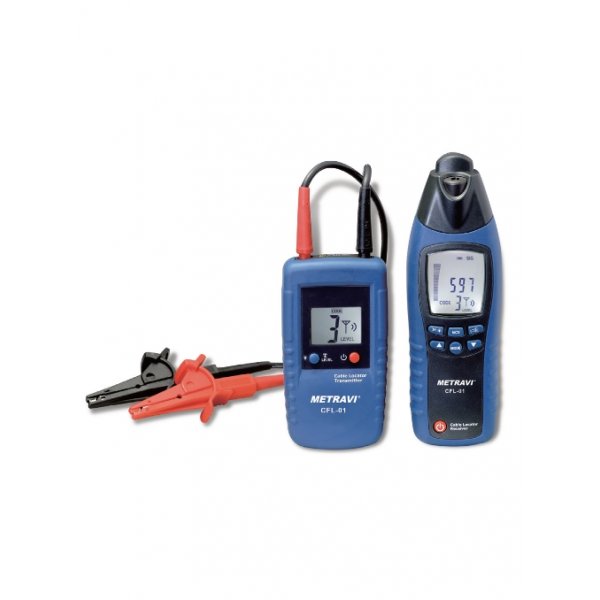

CFL-01
- Consists
of a transmitter and a receiver
- Used
to detect or trace conductors and to find short faults in them.
- The
signal generated by the transmitter is made to a modulated current,
generating an electromagnetic field around a conductor. This electro
magnetic field induces a voltage within the receiving coil. The induced
voltage is amplified, decoded and converted to the original signal by the
received and finally displayed on screen.
- It
is used for finding conductors in
walls, conductor interruptions, short-circuits in conductors
- Conductor
tracing in the soil
- Detecting
fuses and assigning current circuits
- Tracing
sockets and distribution sockets having accidentally been covered by
plastering
- Detecting
interruptions and short-circuits in floor heating
- Tracing
metallic water and heating piping
- All
application areas (both,voltage-free and live) are performed without usin
any additional instruments
- Transmitter
display indicates the transmission level,the transmission code, as well as
the foreign voltage
- Receiver
display indicates the reception level,the transmission code,as well as the
mains voltage detection
- Automatic
and manual sensitivity adjustment
- Acoustic
reception signal may be switched off
- Auto-Power-Off
function
- Backlight
- Additional
lighting function when working under bad lighting conditions
- Additional
transmitters are available to extend or distinguish several signals
