Type
◇Mainboard : RISC CPU 400MHZ, 128M FLASH, 64DDRAM
◇Display size : 10.2 inch
◇Resolution : 800×480 TFT LCD 65536 colors
◇Interface : Support RS232/RS485/RS422, Two Serial Port

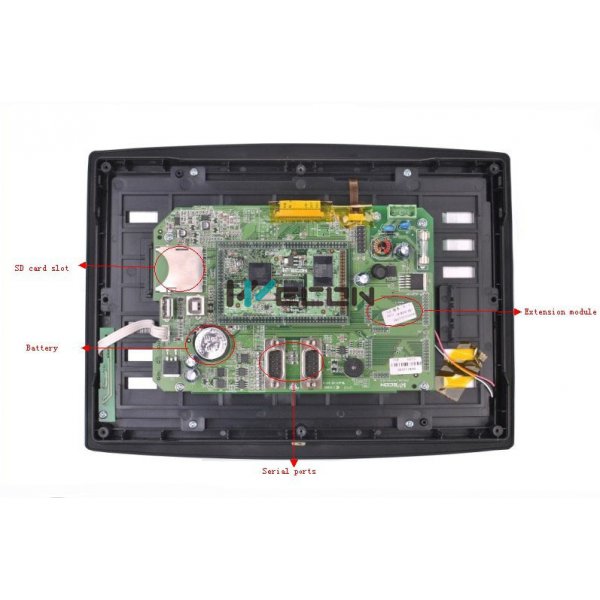

◇Storage : Support Date Storage, SD Card, U Disk

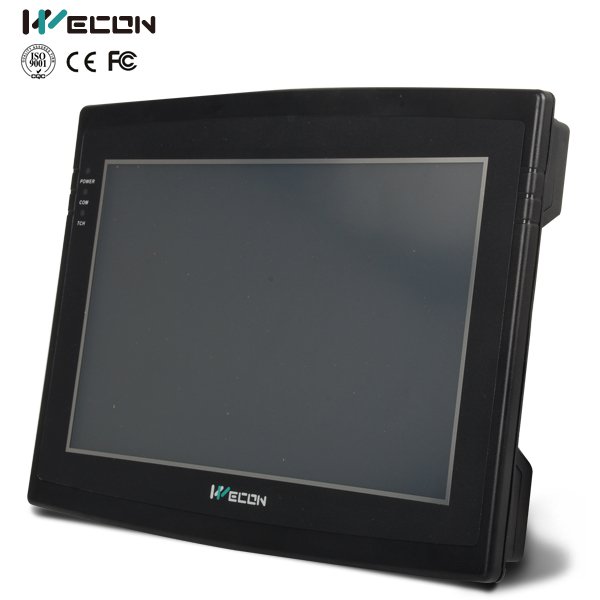

LEVI-102A
◇Performance specifications◇
Display Size
: 10.2inch Ture TFT（219.6W×131.76Hmm）
Resolution
: 800×480 pixels
Color
: 65536 colors
Brightness
: 300cd/m2
Backlight
: LED
Touch Panel
: 4 lines precision resistance(Surface hardness 4H)
Backlight lifes
: 50000 hours
CPU
: 32-bit 400MHz RISC
Storage and Memory
: 128M FLASH + 64M DDRAM
Formula And RTC
: 256KB+Real Time Clock
Printing Port
: Serial Port Printing/USB Print Machine
Ethernet
: Optional
Program Download
: One USB and SLAVE Port

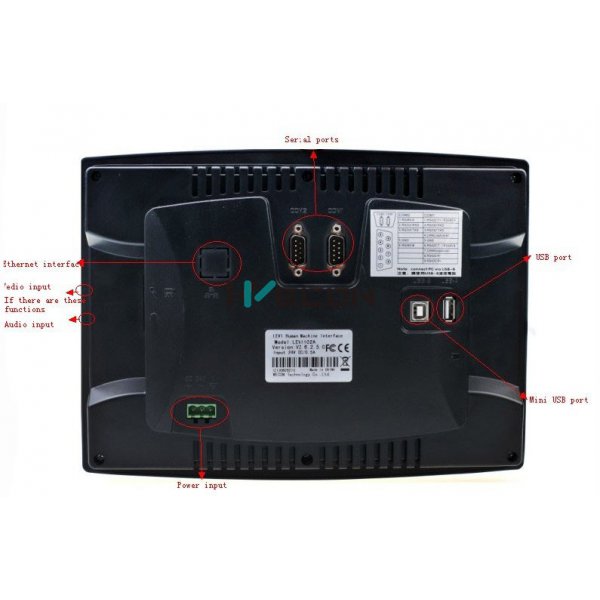

Communicating Port
: COM1:RS232/RS422/RS485，COM2:RS232C/RS485，COM3:RS232/RS485(Optional)
◇Electrical Specifications◇
Rated Power
: Under 5W
Rated Voltage
: DC24V
Voltage Range
: 12～28VDC
Power Interval Allowed
: Under 5ms
Insulation Resistance
: 20MΩ under 500VDC
Withstand Voltage
: 500V AC For 1 Minite
◇Structure Specifications◇
Shell Colors
: Black
Shell Material
: ABS Plastic

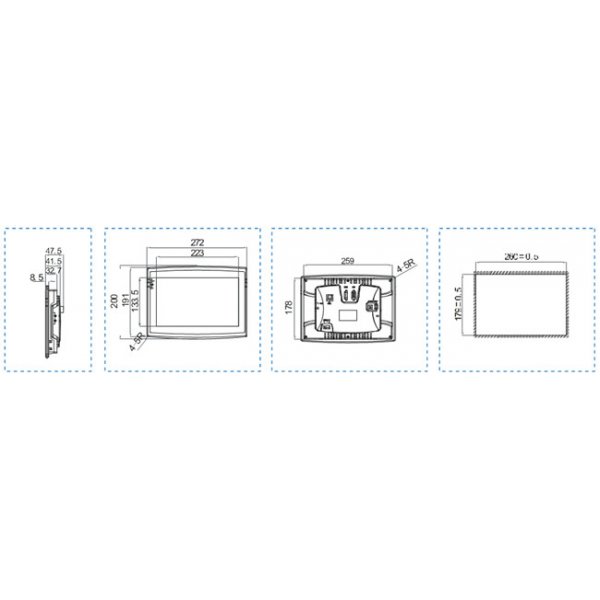

Shape Size
: 272W×200H×47.5Dmm
Installation
: 260W×179Hmm
Weight
: 1.2kg
◇Environmental Specifications◇
Work Temperatrue
: -10～60℃
Work Humidity
: 10～90％RH（No Condensation）
Storage Temperation
: -20～70℃
Storage Humidity
: 10～90％RH（No Cendencation）
Shockproof Test
: 10 ～ 25 Hz (X、Y、Z Orientation 2G/30 Minites)
Coolling Mothed
: Nature Air Coolling
◇Products Specifitions◇
Degree of Panel Protection
: Conform IP65 Certification
CE
: Conform EN61000-6-2：2005， EN61000-6-4：2007 Standard
FCC Compatibility
: Conform FCC Class A
