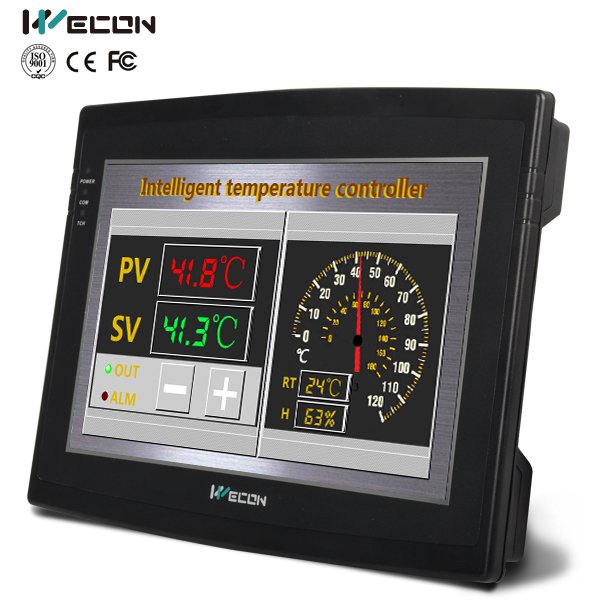

◇Hardware: ARM9 2416 CPU 400MHZ, 128M FLASH, 64DDII RAM
◇Display size: 10.2 inch
◇Resolution: 800×480 TFT LCD 65,536 colors
◇Interface: RS232/RS485/RS422 (1 COM port available)
◇Storage: Support Date Storage, SD Card, U Disk
OS
2416 Platform
CPU
32-bits 400MHz RISC
Touch Screen
High precision four-wire resistive
Screen Size
3.5 inch
Resolution
320*240
Brightness
300 nit
Contract
500:1
Backlight
LED
Backlight Life
50,000 hours
Colors
65536 colors (16bit)
Flash
128MB
RAM
64M DDRAM
RTC
Yes
USB Port
USB Host USB 2.0 x 1 USB Client USB 2.0 x 1
Printer Port
USB printer/ Serial port Printer
Serial Port COM1
RS232/RS422/RS485 (RS232+RS422)
Serial Port COM2
No
Serial Port COM3
No
Ethernet
No
CAN
No
Allowed Power Fail
<5ms>
Power Supply
24V DC(12~28V DC)
Power
<5W>
Power Isolation
Built-in Power Isolation
Withstand Voltage
500V AC (<1>
Insulation Resistance
Upon 20MΩ 500VDC
Seismic resistance
10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)
Cooling
Air cooling
Protection
IP65 (Front panel)
Storage Temperature
-20 ~ 70℃
Environment.Working Temperature
-10℃ ~ 60℃
Humidity
10 ~ 90%RH
Enclosure
ABS
Dimension(mm)
96.0W*81.0H*37.0D
Mounting size(mm)
91.0W* 73.0H
CE Certification
EN61000-6-2:2005, EN61000-6- 4:2007 Standard
FCC Certification
FCC Class A
Software
LeviStudioU Programming Software
