Additional Information
hardware
| OS |
2416 Platform |
|---|---|
| CPU |
32-bits 400MHz RISC |
| Touch Screen |
High precision four-wire resistive |
Display
| Screen Size |
7 inch |
|---|---|
| Resolution |
800*480 |
| Brightness |
300 nit |
| Contract |
500:1 |
| Backlight |
LED |
| Backlight Life |
50,000 hours |
| Colors |
65536 colors (16bit) |
Storage
| Flash |
128MB |
|---|---|
| RAM |
64M DDRAM |
| RTC |
256KB |
| SD card |
Yes |
Ports

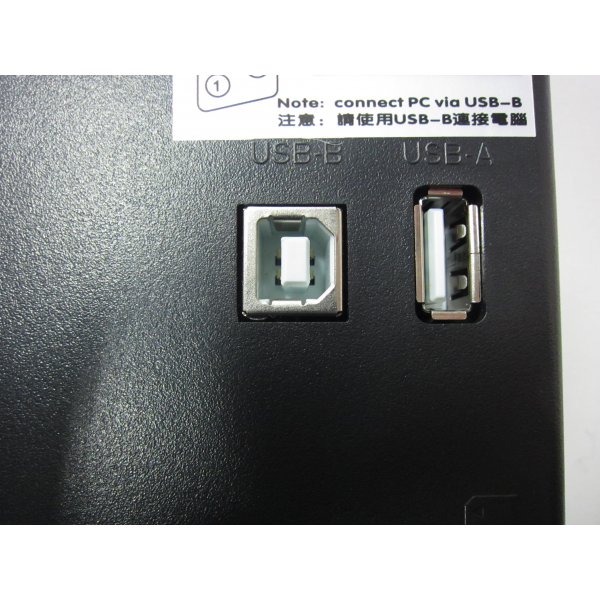

| USB Port |
USB Host USB 2.0 x 1 USB Client USB 2.0 x 1 |
|---|---|
| Printer Port |
Serial port Printer |
| Serial Port COM1 |
RS232/RS422/RS485 |
| Serial Port COM2 |
No |
| Serial Port COM3 |
No |
| Ethernet |
No |
| CAN |
No |
Power
| Allowed Power Fail |
<5ms |
|---|---|
| Power Supply |
24V DC(12~28V DC) |
| Power |
<8W |
| Power Isolation |
Built-in Power Isolation |
| Withstand Voltage |
500V AC (<1 minute) |
| Insulation Resistance |
Upon 20MΩ 500VDC |
| Seismic resistance |
10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) |
Environment
| Cooling |
Air cooling |
|---|---|
| Protection |
IP65 (Front panel) |
| Storage Temperature |
-20 ~ 70℃ |
| Environment.Working Temperature |
-10℃ ~ 60℃ |
| Humidity |
10 ~ 90%RH |
Specification
| Enclosure |
ABS |
|---|---|
| Dimension(mm) |
212.0W*146.0H*36.0D |
| Mounting size(mm) |
192.0W*138.0H |
| Net / Gross (KG) |
0.6/1.0 |
Certification
| CE Certification |
EN61000-6-2:2005, EN61000-6- 4:2007 Standard |
|---|---|
| FCC Certification |
FCC Class A |
