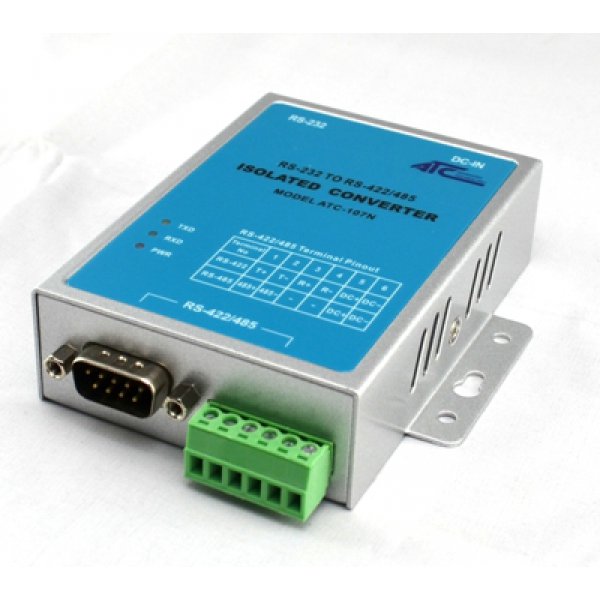

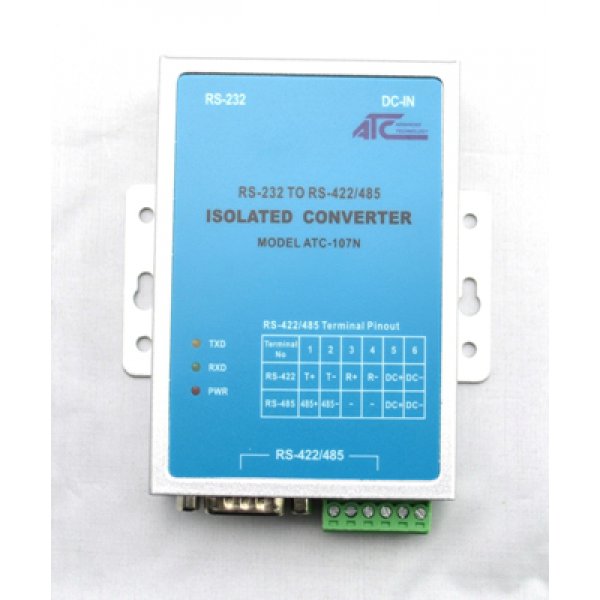

RS-232 to RS422/485 Industrial class Wall mounted Isolation Interface Converter
| Transmission Media | : Twisted pair cable or shielded cable |
| Operation Mode | : Asynchronous half or full duplex |
| Signal Indication | : 3 light indication TR, RD, PWR |
| Protection Grade | : 1000 W RS-485/RS-232 Side, 600 W RS-232 Side |
| Isolation | : Isolation Voltage 3500VRMS 500VDC sequence |
| Transmission Speed | : 9600BPS to 5 KM |
| Supply | : External 9˜12VDC |
| Transmission Distance | : 0˜5 Kms (115200˜9600BPS) |
| Working Environment | : -25°C˜70°C, 5%˜95%RH |
| Size | : 95 mm × 85 mm × 26 mm |
