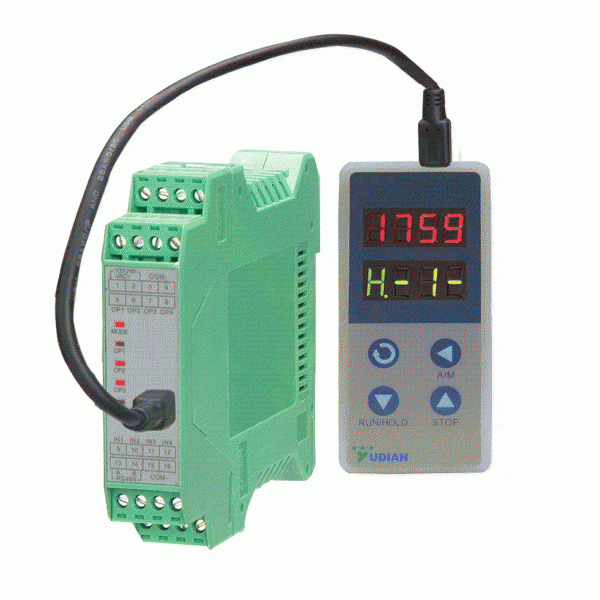

8.1 Yudian AI-7021-D5 Dual Temperature Transmitter
Din Rail Mounted Transmitter And Isolator
- Provides 2 channels of configurable inputs, and supports multiple voltage, RTD, thermocouple
- Inputs with auto reference junction compensation
- Generates two isolated current outputs, 4-20mA or 0 – 20mA
- High performance hardware, which leads to greatly decreased temperature
- Drift Franck Muller Replica Watches and interference among the two channels
- Achieves the measurement accuracy and anti-interference ability
- Generates digital adjusted current output without potentiometer, making the current output
- Precise and stable
- ISO9001 and CE certified and meets EMC standards. Its power and all I/O terminals pass.
- 4KV/5KHz EFT test and can work reliably under interference.
Din Rail Mounted Transmitter And Isolator
- Provides 2 channels of configurable inputs, and supports multiple voltage, RTD, thermocouple
- Inputs with auto reference junction compensation
- Generates two isolated current outputs, 4-20mA or 0 – 20mA
- High performance hardware, which leads to greatly decreased temperature
- Drift Franck Muller Replica Watches and interference among the two channels
- Achieves the measurement accuracy and anti-interference ability
- Generates digital adjusted current output without potentiometer, making the current output
- Precise and stable
- ISO9001 and CE certified and meets EMC standards. Its power and all I/O terminals pass.
- 4KV/5KHz EFT test and can work reliably under interference.
| Input(Single or Dual) |
: All type of thermocouple and PT100‚ cu50 (RTD)‚ linear voltage‚ MV‚ linear current |
| Re transmission O/P (Dual) | : Linear current (4 20 mA) or voltage (Freely defined) |
| Power supply | : SMPS 100~240VAC‚ 50 Hz |
| Re transmission accuracy | : 0.3%FS± 1 Digit |
| Display resolution | : 0.001° C (Selectable) |
| Size (W x H) | : 22.5 x 100 (DIN rail) |
| Other features | : Input offset |
| Operating ambient | : 10C~60°C |
| humidity | : <90%RH
|
